AISI 304 bracket, ±0.01 mm bores, 5,000 pcs/day capacity, first article report included
Part no.: NV-CNC-1042
| Material | AISI 304 / 1.4301 stainless steel bar |
|---|---|

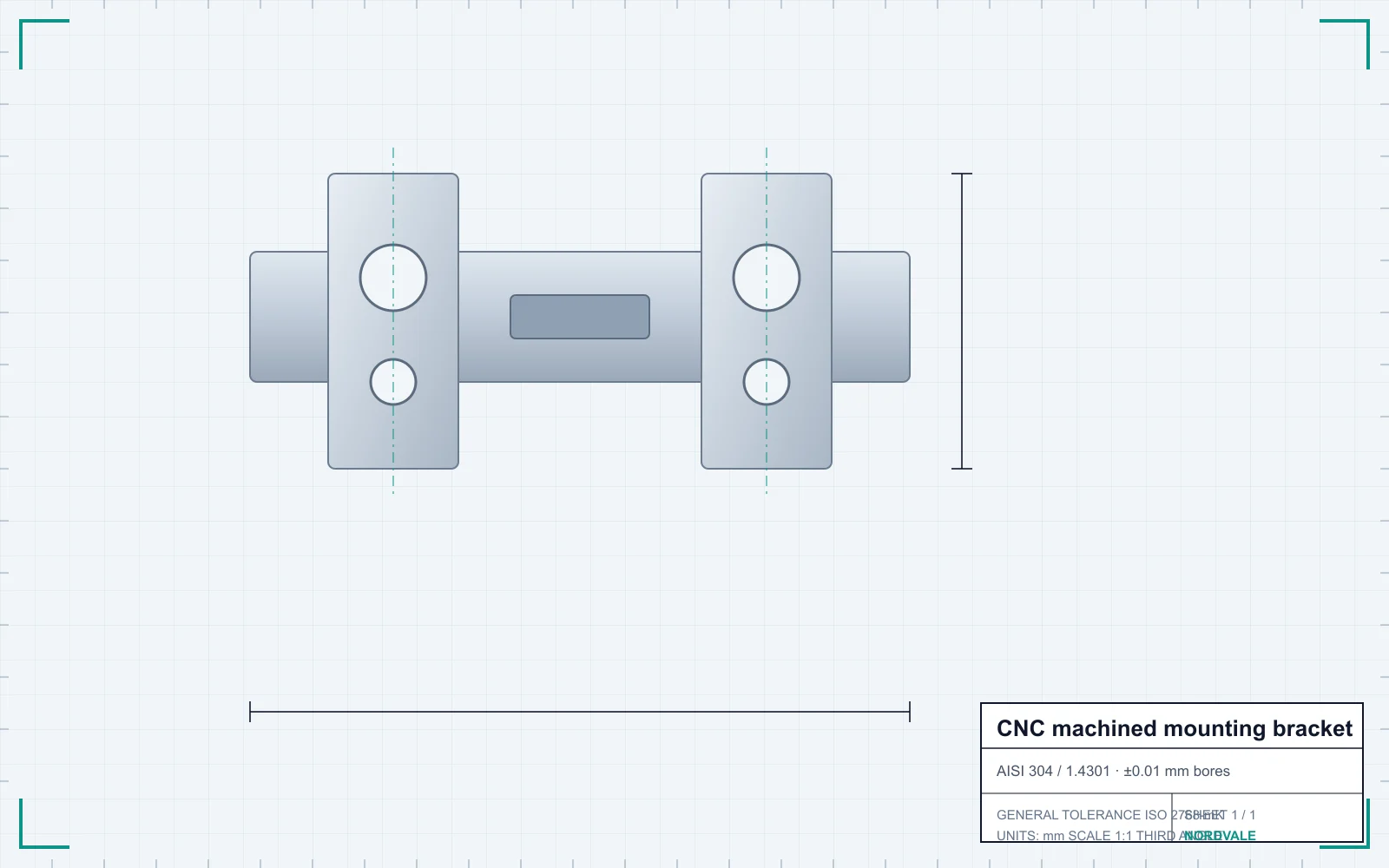

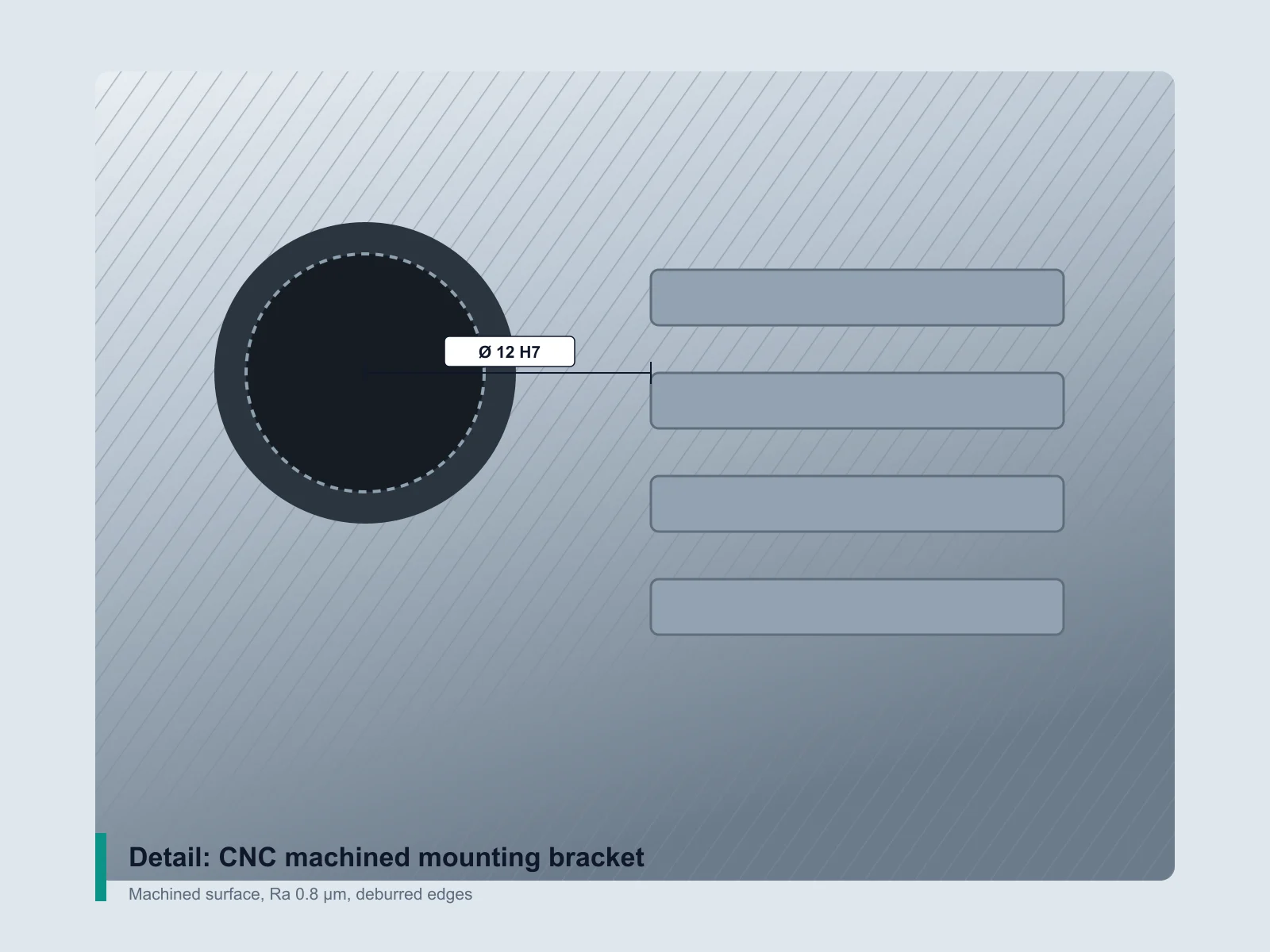

| Overall dimensions | 168 × 92 × 46 mm |
| Bore diameter | Ø 20 H7 and Ø 12 H7, finish-bored |
| Bore tolerance | ± 0.01 mm |
| Centre distance tolerance | ± 0.02 mm |
| General tolerance | ISO 2768-mK |
| Surface finish | Ra 1.6 µm on machined faces, Ra 0.8 µm in bores |
| Weight | 0.74 kg |
| Finish | Passivated to ASTM A967, glass-bead blasted |
| Operating temperature | −40 °C to +180 °C |
| Inspection | CMM first article, 100% bore gauge, dimensional report per batch |
A four-bolt mounting bracket machined from solid 304 stainless bar on a 4-axis horizontal machining centre. Designed as a drop-in replacement for a die-cast bracket on industrial pump assemblies, with the bores finish-bored in a single setup so the hole-to-hole centre distance holds without a secondary operation.
Die-cast brackets move with temperature and lose the bore tolerance after a few thousand cycles. A machined bracket holds ±0.01 mm across the whole batch, which removes a shimming step from the customer assembly line.
Yes. Send a PDF or STEP file with the tolerance-critical features marked and we will confirm feasibility and price within one business day. A DFM note is included at no cost if anything in the design will be expensive or slow to produce.
The first piece is measured on a CMM and the report is sent before the batch continues. Every subsequent part is checked with calibrated plug gauges, and a dimensional report travels with the shipment.
100 pieces for this part, because the bar stock and setup are already defined. For a new part number that needs a fixture, the practical minimum is 200 pieces.
Yes — an EN 10204 3.1 certificate traceable to the heat number is supplied as standard with every shipment, at no extra cost.
Yes. We ship DDP to Germany, the Netherlands, Poland, Italy and the Czech Republic through a freight forwarder we have used for eight years. Duty and import VAT are prepaid and shown separately on the invoice.
Send drawings, a part number or a description of the component you need. We reply with a quotation, lead time and tooling assessment — usually within one business day.
316L body, full port, ISO 5211 pad, hydro-tested at 1.5× with certificate per batch
Part no. NV-VLV-2050 · From USD 38.50/pc FOB Ningbo at 100 pcs
1.5 mm S355 sheet, IP54 gasket groove, RAL 7035, 500-hour salt spray
Part no. NV-SHM-3110 · From USD 24.80/pc FOB Ningbo at 200 pcs
6063-T5 extrusion, black anodised, CNC machined faces to ±0.02 mm
Part no. NV-ALU-5008 · From USD 8.90/pc FOB Ningbo at 1,000 pcs
