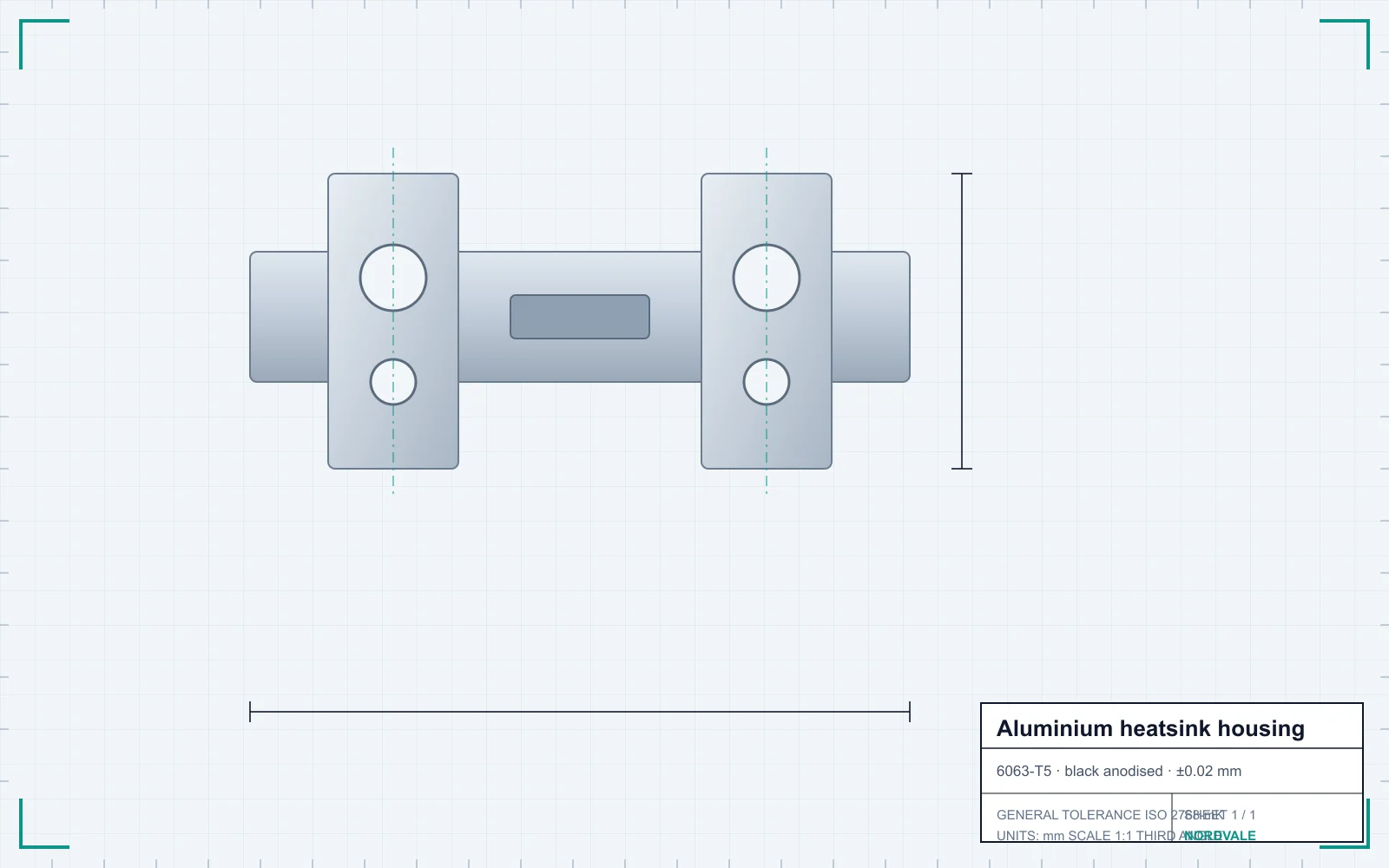

6063-T5 extrusion, black anodised, CNC machined faces to ±0.02 mm
Part no.: NV-ALU-5008
| Alloy and temper | 6063-T5 |
|---|---|
| Profile cross-section | 80 × 45 mm, 18 fins |
| Length | 60 – 400 mm, cut to order |
| Machined tolerance | ± 0.02 mm on end faces and bores |
| Extrusion tolerance | EN 755-9 |
| Finish | Black anodised, 20 µm |
| Thermal resistance | ≈ 0.9 °C/W at 100 mm length, natural convection |
| Weight | 0.31 kg per 100 mm |
An extruded aluminium housing that doubles as the heatsink for a compact servo drive. Fins are part of the extrusion, so there is no thermal interface between the sink and the housing — the loss of a bolted joint is usually worth several degrees.

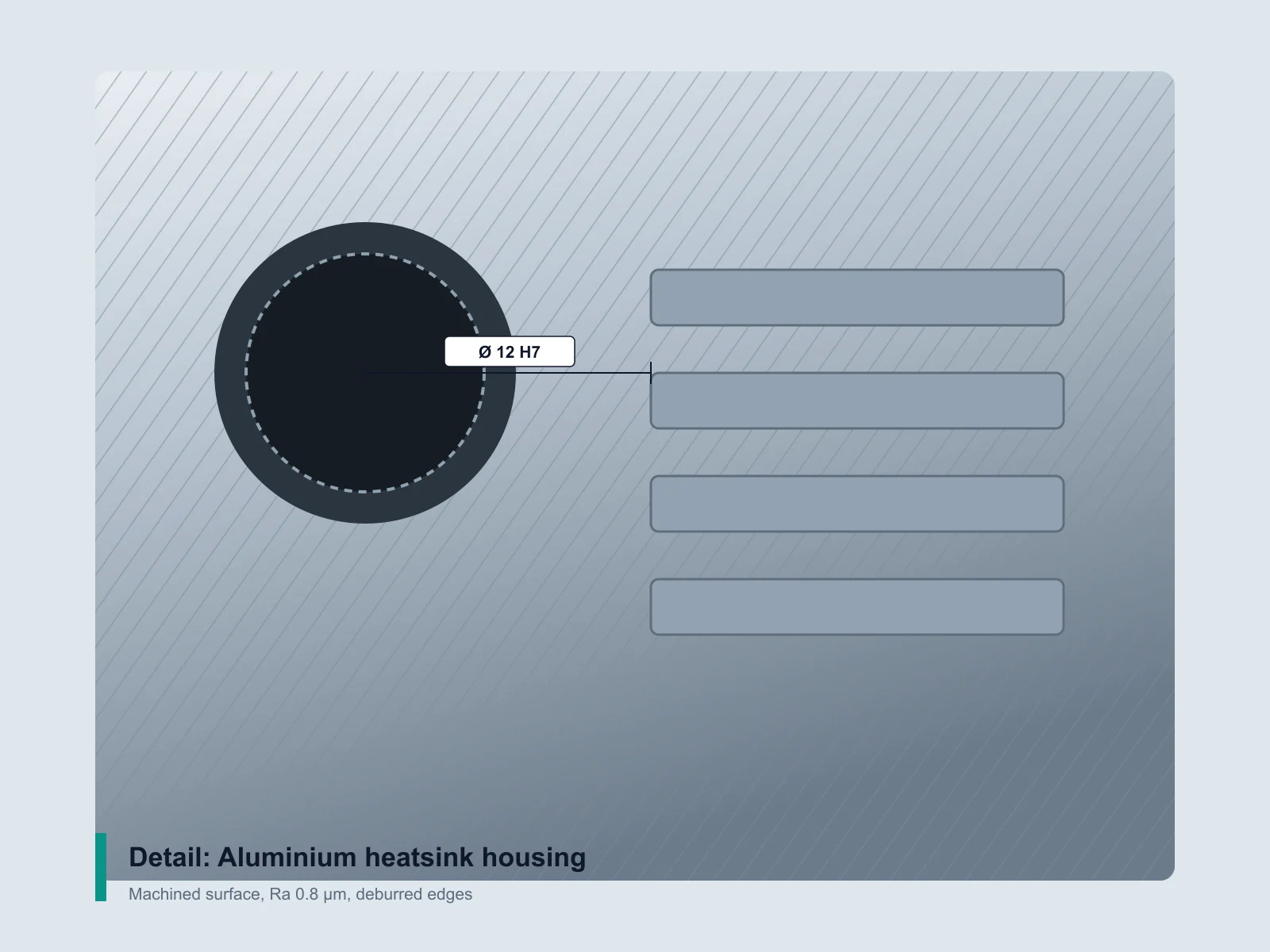

End faces are milled to ±0.02 mm for a flush PCB mount; mounting holes are drilled and tapped in the same fixture. Black anodising at 20 µm gives both emissivity for radiation cooling and scratch resistance.
Yes. A new die takes 10–14 days and is amortised over the first order; from the second order the profile price is lower than this catalogue part because there is no die recovery in it.
It improves it for radiation and barely affects conduction. A black anodised surface radiates considerably better than bare aluminium, which matters in still air without forced convection.
Send drawings, a part number or a description of the component you need. We reply with a quotation, lead time and tooling assessment — usually within one business day.
